Capsule and tablet inspection
KDI-1 Tablet & Capsule Inspection Machine
The KDI-1 presents capsule and tablet surfaces for visual inspection. Capsules rotate through 360 degrees and tablets turn to expose both sides, allowing an operator to identify and remove spotted, broken or otherwise nonstandard pieces.
For pharmaceutical, biotechnology, health supplement and other solid-dose production applications.
Enquire about KDI-1
How inspection works

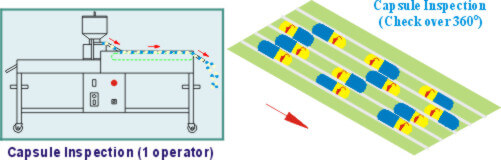

Capsules rotate and tablets turn as they travel through the machine. An inspector views the exposed surfaces and manually removes defective pieces. The original product description specifies one operator for capsule inspection and two for tablet inspection.
This is a visual inspection process performed by people; the supplied specifications do not describe camera-based automatic rejection.
Key features
- Adjustable feeding speed for different products.
- Stainless steel housing, hopper and guides, as described in the original specification.
- Conveyor belt designed for durability and cleaning.
- Guide change between capsule and tablet operation, described as taking within 10 minutes.
- Designed for straightforward operation, cleaning and maintenance.
KDI-1 technical specifications
| Maximum capsule throughput | 50,000 pieces/hour |
|---|---|
| Maximum tablet throughput | 70,000 pieces/hour |
| Capsule inspection operators | 1 person |
| Tablet inspection operators | 2 persons |
| Power supply | AC 110/220 V, 50/60 Hz |
| Power consumption | 1/4 HP (as stated in source) |
| Machine dimensions (L x W x H) | 220 x 50 x 140 cm |
|---|---|
| Packing dimensions (L x W x H) | 230 x 65 x 135 cm |
| Net weight | 150 kg |
| Gross weight | 220 kg |
Maximum capacities and other values are transcribed from the supplied product source. Confirm the configuration and suitability for your product with KD Machine before ordering.
Products and applications
The source lists capsules, tablets, round pills and other solid medications as applicable products. Suitability for a particular shape and inspection standard should be checked against your samples and production requirements.
Ask about the KDI-1
Share your capsule or tablet size, target throughput and inspection requirements to discuss a suitable setup.
Kwang Dah Enterprises · New Taipei City, Taiwan · +886 2 2971 3333
