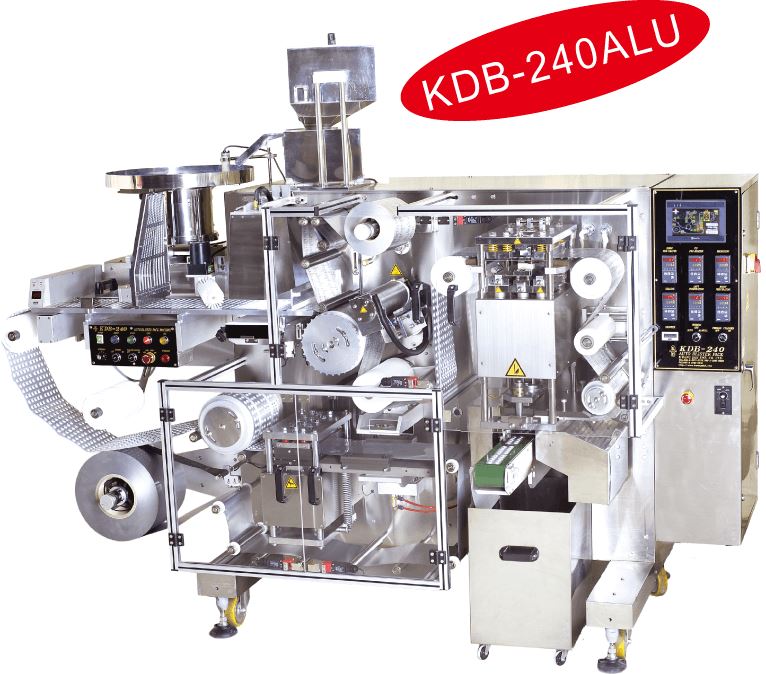

KDB-240 Automatic Blister Packaging Machine

Blister Packaging Machine, Blister Machine

KDB-240-Automatic Blister Packing Machine.mp4

KDB-240(Europe).mpg

KDB-240AUL(Europe).mpg

GENERAL:

Based on fast production need and forecasting of world trend of cGPM & PIC/S GMP packing requirement to match Europe standard and market requirement.
Kwang Dah spend years of research and developing, change single line (KDB-120) to double line(KDB-240) production process and machine function remain same with KDB-120, successfully increasing production speed up to 400 blisters/minute satisfy customer's fast production need.





FEATURES:



1.

Compact size with all function and fast production.

  2. Equipped with trouble detection system which displays where the trouble is.
  3. The machine adopts a no waste trimming method to save material.
Trimming by precise Index, not waste packing material between two blisters and saves material cost.
  4. t is very easy to exchange all the size change parts. It takes less than 30 minutes to finish.
  5. Main frame is covered with stainless steel. This makes it easier to clean and meets cGPM & PIC/S GMP standard.
  6. It is neither noise nor creates public hazards and it is easy to operate.
  7. By Cross Net sealing isolate Oxygen and humidity, expiration is about 4 times longer than traditional dot-type sealing.
  8. By advantage Rotary Sealing System Sealing instantaneously to prevent high temperature getting into the blister pockets not effect medicine characteristic.
  9. Conveyor Belt design blister transfer to next station automatically.
  10. Mechanical transmission design , moving precisely and more save power.
  11. Precise index lead running parts locate position precisely save operator's un-necessary adjust time during operation.



GENERAL:

In order to preserve medicine longer based on KDB-240 (PVC/ALU) machine structure Kwang Dah specially develop double line KDB-120ALU (ALU/ALU) capable to produce PVC/ALU and ALU/ALU blister both.

By Cold Forming way enforce aluminum film draw extension in pressing mold then formed aluminum pocket.

Due to aluminum characteristic it will keep contamination away from aluminum pocket, isolate Oxygen and humidity and avoid direct sunlight affect, keep medicine shelf life longer.

This compact size machine with all functions, starting from smooth Cold Forming, Pin Hole detect, Auto feeding, Missing detect, Rotary Sealing, Coding, Perforation, Trimming, Blister Transfer, offering user automatic production process.

KDB-120ALU can produce PVC/ALU and ALU/ALU both. In addition, It can work with other materials like PVC, PVDC, PP, PET…etc.







FLOW CHART
PTP Blister Packaging Process
KDB MACHINE
Sealing Line (cross-net type)
  TRADITIONAL MACHINE
Sealing Dot (plate type)
KDB Machine
TRADITIONAL Machine
Cross-net type roller,due to crossed net sealing is capable of blocking the air completely and prolonging medicine preservation about 4 times over plate type sealing.
The cross-net type roller is composed of two rollers compressed in a single line with a very small contact area preventing hot air from getting into the blister pockets,so medicine effectiveness is unaffected.
  Dot type (plate-type)
Plate type uses dot-type sealing:air gets into the medicine where there aren't dots and thus
shortens expiration.
Since the sealing area is larger and sealing time
longer, during the sealing process, hot air easily
gets into the blister pockets. This decreases the
effectiveness of the medicine.
Cutting Method

Cutting Method

The machine adopts a no waste cut method, so no wasted material is
produced. It can save
about 1/5 of material compared to traditional types.
  Plate-type of triming wastes about 3-5 mm
of material between two blister and increases cost at the same time.


OUTPUT FOR KDB-240:

*Special size available.



OPTION:


TECHNICAL DATA
 Model  KDB-240 KDB-240ALU
 Output  Max. 400 blisters/min Max. 200 blisters/min
 Forming/Material Width  Max.265 mm
 Forming Depth Max.12 mm Max.9 mm
 Formed Area Available  Max.146 x 250 mm
 Reel Diameter  Forming Material  Max. Φ 500 mm
 Lidding Material  Max. Φ 280 mm
 Reel Core  Φ 70 ~ Φ 76 mm
 Power Supply  220V/380V 50HZ/60HZ 3 phase
 Power Consumption  11.8 KW
 Air Consumption  6 kgf/cm? , 110 ∫/min
 Forming Materials  PVC, PVC/PVDC
 PVC/ACLAR, PP

 Aluminium laminate,PVC,PP,

 PVC/PVDC,PVC/ACLAR,

 Lidding Foil

 ALU/HARD,ALU/SOFT,ALU/PAPER,

ALU/POLYESTER,PP

 Machine Size (LxWxH)  190x140x230 (cm)
 Packing size (LxWxH)  215x165x215 (cm)
 Gross Weight  1900kgs
 Net Weight  1500kgs

◎ The specification, appearance and dimensions shall be subject to change without prior notice.
◎ Other KD machine series please browse our website check to detail.




KDB-240 Automatic Blister Packing Machine



Product Series
